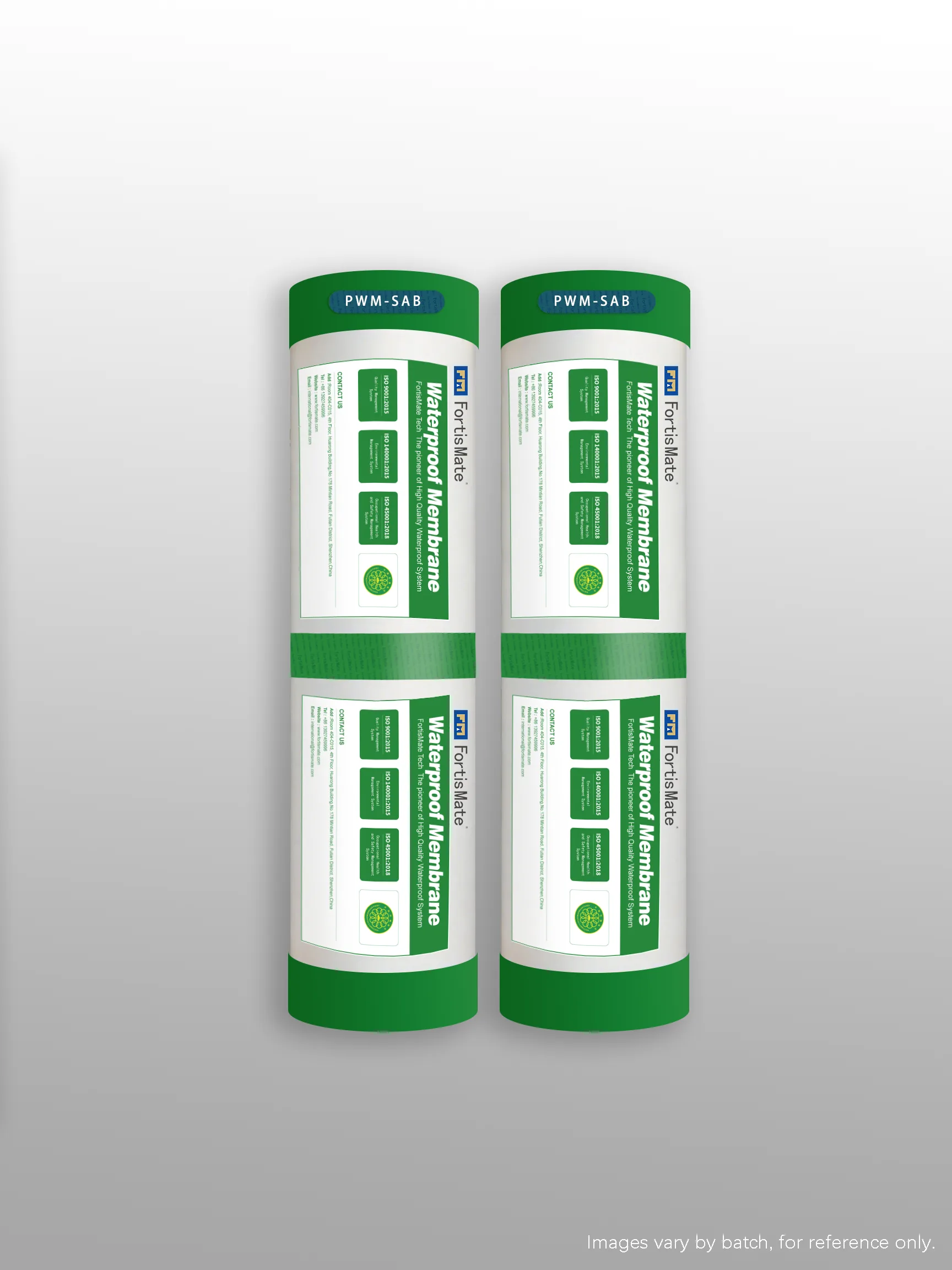

FortisMate® PWM-SAB
Product Details
| Place of Origin | CHINA |
| Brand Name | FortisMate TECH |
| Model Number | PWM-SAB |
| Application Methods | Pre-applied |
| Minimum Order Quantity | 1,000㎡ |
| Packaging Details | With or without pallets; For 1.5mm thickness, 11,500 ㎡ can be loaded into 1x20GP if without pallets. |
| Supply Ability | 10,000,000㎡ per Month |
FortisMate PWM Series
FortisMate® PWM-SAB is a high-performance bitumen-based pre-applied self-adhesive waterproof membrane, designed specifically for underground pre-applied waterproofing projects. It uses polyester non-woven fabric as the carrier, impregnated and coated with polymer-modified bitumen, finished with a sand anti-adhesive layer on the top and a release liner on the bottom.
The membrane bonds permanently with post-cast concrete, forming a skin-type waterproof system that eliminates water channeling. It offers excellent self-healing, high tensile strength, and strong puncture resistance.
Highlight: PWM: Pre-applied Waterproof Membrane；SAB: Self-Adhesive Bituminous

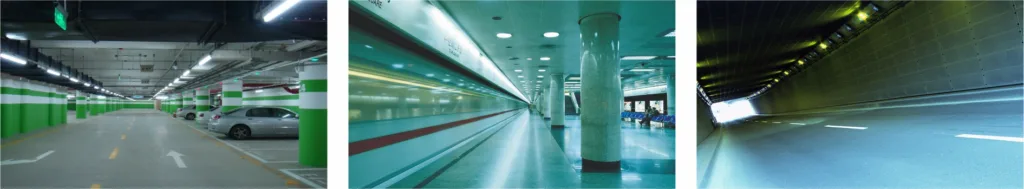

Scope of Application
• Metro & tunnel structures
• Underground pipe galleries
• Foundation pits
• Pre-applied reverse-adhesion waterproofing for concealed excavation
Specifications
| Thickness(mm) | Width(mm) | Length |
|---|---|---|
| 4.0 | 1000 | 10 |
| Carrier | Adhesive | Top Surface | Bottom Surface |
|---|---|---|---|
| Polyester Non-woven Fabric | Polymer-modified Bitumen | Sand Anti-adhesive Layer | Release Liner |
Note: Other specification can be offered according to the agreement between buyers and supplier.
Physical & Mechanical Properties
(Tested per GB/T 23457-2017)
| No. | Item | Index |
|---|---|---|
| 1 | Soluble Content (g/m²) | ≥ 2900 |
| 2 | Tensile Strength (N/50 mm) | ≥ 800 |
| 3 | Elongation at Break (%) | ≥ 40 |
| 4 | Nail Tear Strength (N) | ≥ 200 |
| 5 | Puncture Resistance (N) | ≥ 550 |
| 6 | Impact Resistance (0.5 kg·m) | No leakage |
| 7 | Static Load Resistance (20 kg) | No leakage |
| 8 | Heat Resistance (70°C, 2 h) | No slip, no flow, no drip |
| 9 | Low-Temperature Flexibility | −20°C, no crack |
| 10 | Anti-channeling (0.8 MPa, 4 h) | No water channeling |
| 11 | Water Impermeability (0.3 MPa, 120 min) | Impermeable |
| 12 | Peel Strength to Concrete (N/mm) | ≥ 1.5 (dry) / ≥ 1.0 (wet) |
| 13 | Dimensional Stability (%) | ≤ ±0.7 |
| 14 | Thermal Aging (80°C, 168 h) | Tensile retention ≥ 90%; elongation retention ≥ 80%; low-temp ≥ −18°C |

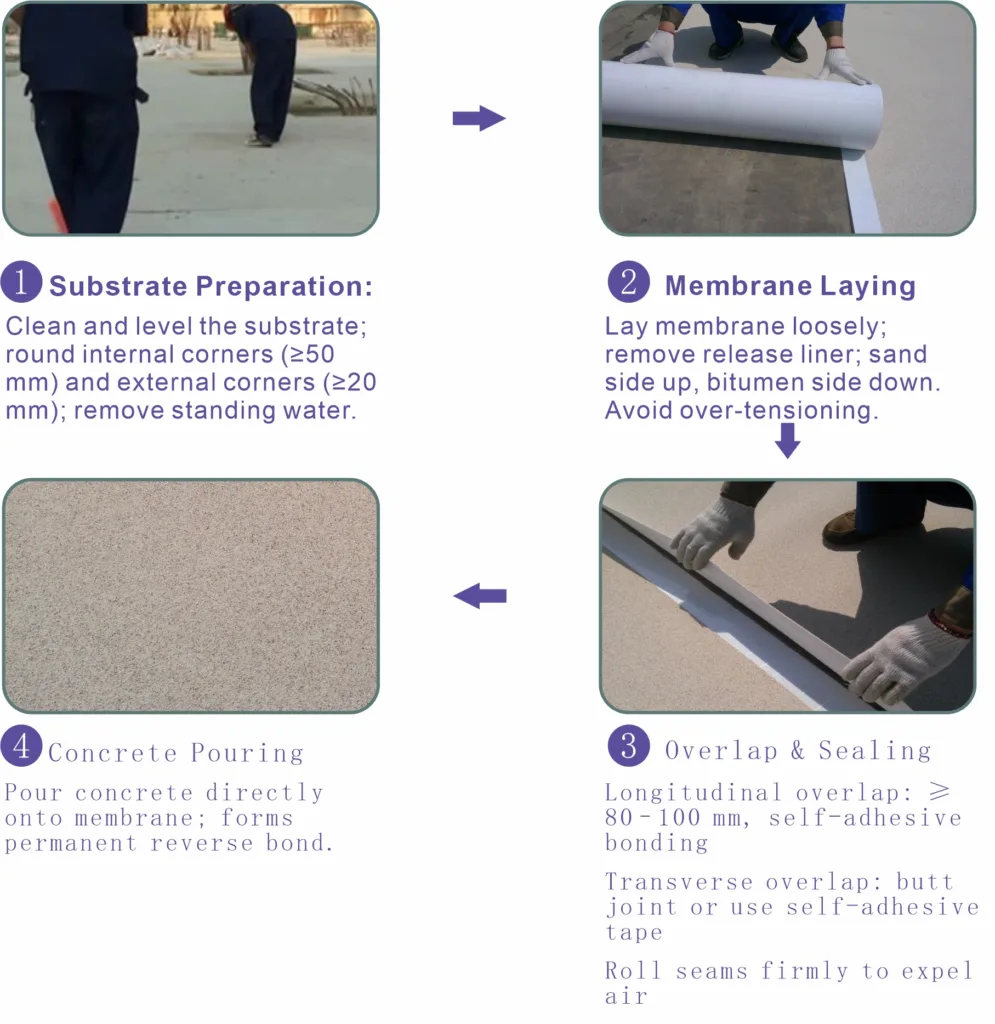

Construction Methods
Quality Assurance
PWM-SAB is manufactured under strict ISO quality control, compliant with GB/T 23457-2017. Widely used in large underground projects, ensuring reliable skin-type waterproofing.
Storage and Transportation
- Store in cool, dry, ventilated area.
- Avoid sun, rain, fire. storage temp ≤45°C.
- Stack horizontally ≤ 5 layers, vertical single layer.
- Shelf life: 12 months under proper storage.

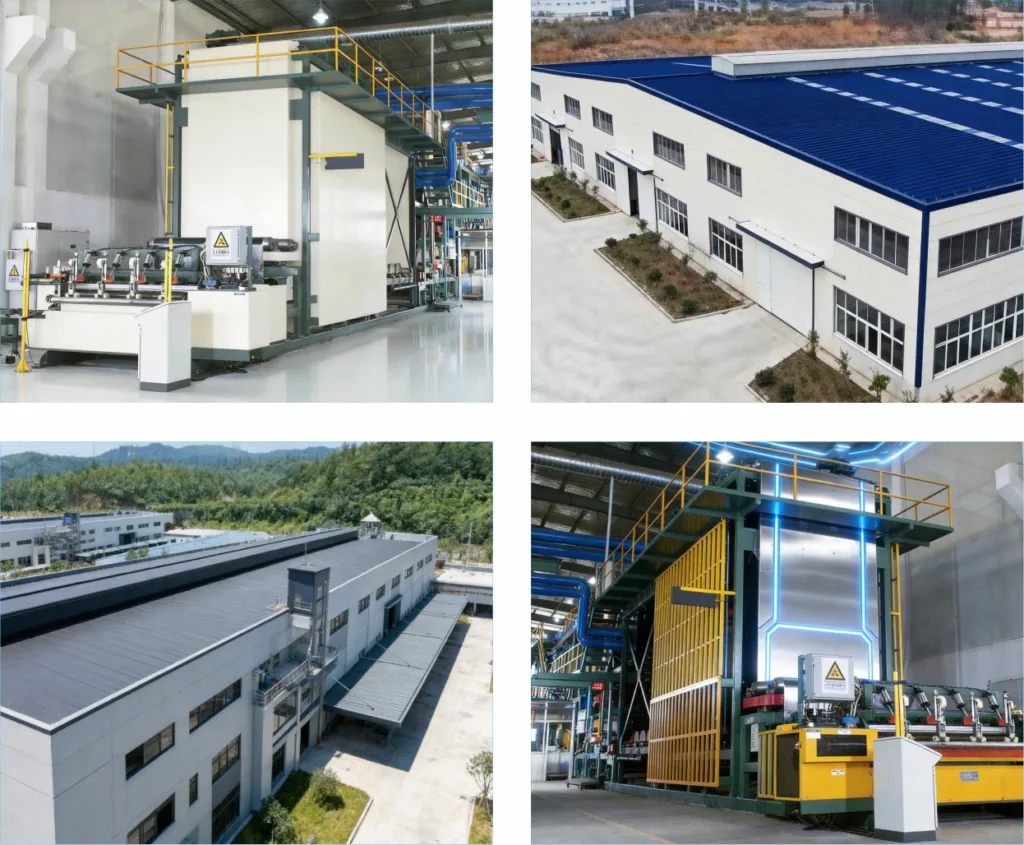

Manufacturing bases

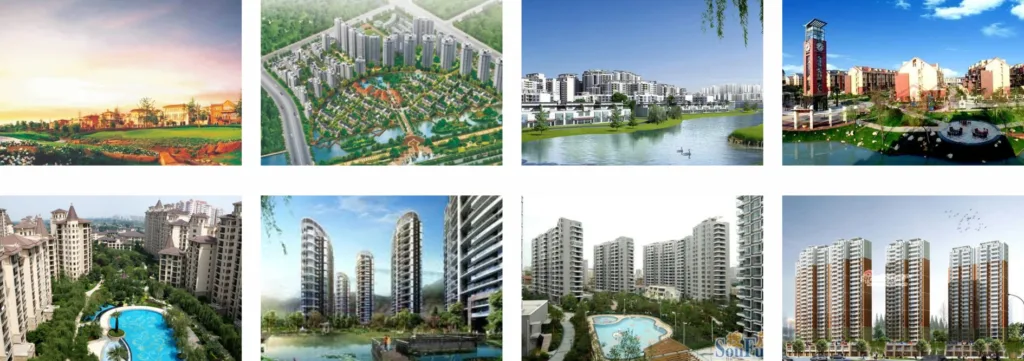

Typical Project
FAQs
What types of products can we offer?
We supply a complete range of waterproof materials for construction projects worldwide, split into two core product lines:
Waterproof Membranes
Self-adhesive, torch-applied, conventional bituminous, root-resistant and pre-applied bitumen rolls, as well as special PVC and TPO polymer sheets for tunnel engineering.
Liquid Waterproof Coatings
Polyurethane, polyurea, acrylic, bituminous, polymer-modified cement and capillary crystalline waterproof coatings.
Our materials are applicable to underground basements, tunnels, exposed roofs, green planting terraces, reservoirs and exterior wall projects. Custom formulas and customized packaging services are offered to meet diverse client demands.
What logistics do we ship through?
We cooperate with multiple mature logistics solutions for global delivery: sea freight, air freight, international express (DHL, FedEx, UPS, TNT) and railway transport. We will select the most cost-effective and stable shipping method based on your order volume, delivery deadline and destination country. Door-to-door delivery service is available upon request.
Can it be customized as per our requirements?
Specifications vary for different series of our waterproof products.
Other specifications and models can be determinedby negotiation between the supplier and the demander.
What is our ordering process?
We adopt the deposit + full balance payment mode for all orders:
A 50% advance deposit is required to arrange raw materials and production after order confirmation.
The remaining full payment must be completed before we arrange delivery of goods.
We accept T/T bank transfer and other negotiable payment terms.
What services are included in the after-sales service?
1、Professional online construction technical support & free technical documents
2、Official waterproof warranty coverage for all our products
3、24-hour fast after-sales reply & long-term supply of matching waterproof auxiliary materials
