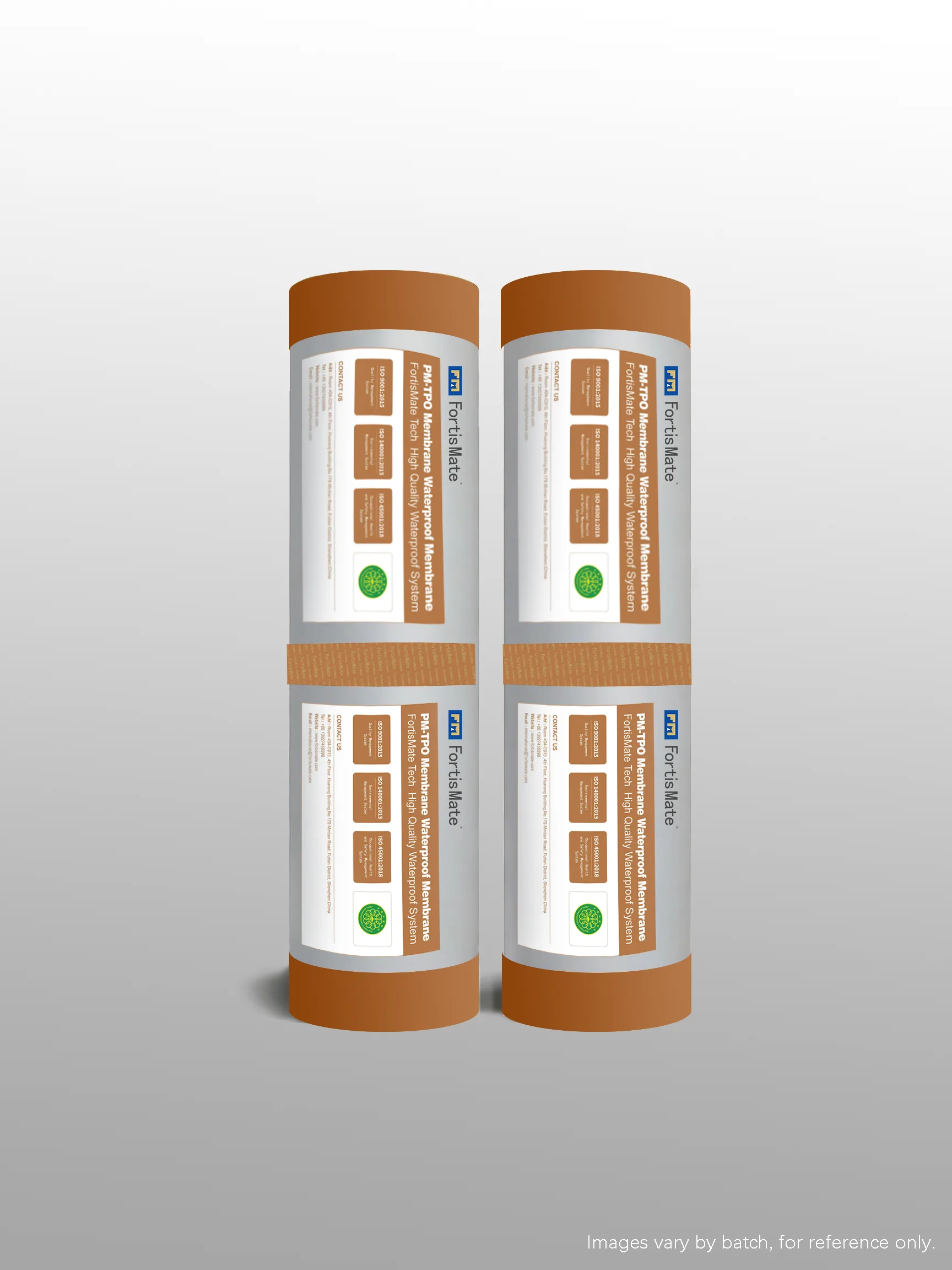

FortisMate® PM-TPO
Product Details
| Place of Origin | CHINA |
| Brand Name | FORTISMATE TECH |
| Model Number | PM-TPO |
| Application Methods | Synthetic Polymer, Root Resistant |
| Minimum Order Quantity | 1,000m² |
| Packaging Details | With or without pallets; For 1.2mm thickness, 13,600m² can be loaded into 1x20GP if without pallets. |
| Supply Ability | 10,000,000m² per Month |
FortisMate™ PM Series
FortisMate® PM-TPO is a high-performance thermoplastic polyolefin waterproof membrane, compounded with ethylene-propylene rubber and polypropylene. It combines rubber-like flexibility with plastic-like weldability.
The membrane features high tensile strength, excellent elongation, low shrinkage, outstanding low-temperature flexibility, and long-term weather resistance.
Widely used for exposed roofs, green roofs, basements, tunnels, and large scale industrial waterproofing projects.
Highlight: Thermoplastic Polyolefin (TPO) Waterproof Membrane
Quality Assurance
PM-TPO is manufactured under strict ISO quality control, complying with GB 27789-2011 and international standards, ensuring stable performance and long service life.
Core Advantages
1. Superior Flexibility & Strength
Rubber-like flexibility and high tensile strength adapt to large structural movements and substrate deformation.
2. Extreme Temperature Resistance
Flexible down to −40°C and stable under high heat; suitable for cold and tropical climates.
3. Excellent Weather & Aging Resistance
High UV resistance, oxidation resistance, and durability; ideal for long-term exposed applications.
4. Reliable Hot-Air Welding
Seamless hot-air welded joints form a monolithic waterproof layer, easy to inspect.
5. High Puncture & Root Resistance
Resists mechanical damage and plant root penetration, perfect for green roofs.
6. Fast & Eco-friendly Installation
Lightweight, no open flame, no toxic fumes. Supports mechanical fixing, loose laying, or full adhesion.
7. Easy Detailing & Modification
Good plasticity simplifies corner, pipe, and penetration treatments.
Application Range
Roofs: Exposed roofs, green roofs, industrial roofs
Underground: Basements, tunnels, subways
Planting Areas: Green roofs, roof gardens
Industrial Buildings: Factories, warehouses
Commercial Buildings: Shopping malls, stadiums
Specifications

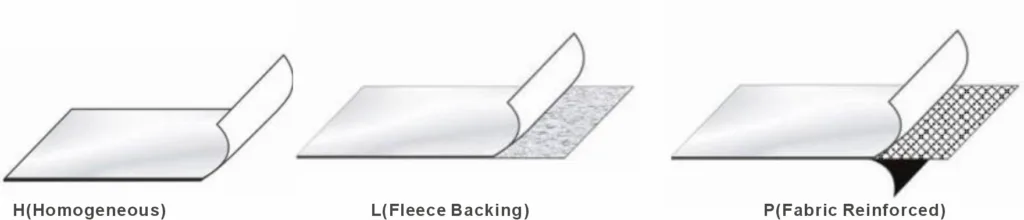

| Type | Model | Thickness (mm) | Width (m) | Length (m) |
|---|---|---|---|---|
| Homogeneous | H | 1.2, 1.5, 2.0 | 2 | 20 |
| Fleece backing | L | 1.2, 1.5, 2.0 | 2 | 20 |
| Fabric reinforced | P | 1.2, 1.5, 2.0 | 2.05 | 20 |
Custom sizes available upon request.
Property Index
Standards: GB 27789-2011
| Item | H | L | P | |
|---|---|---|---|---|
| Tensile property | Maximum tension/(N/cm) ≥ | — | 120 | 250 |
| Elongation with maximum tension/% ≥ | — | — | 15 | |
| Elongation at break /% ≥ | 500 | 250 | — | |
| Low temperature flexibility /℃ ≥ | -40°C, no crack | -40°C, no crack | -40°C, no crack | |
| Water impermeability ≥ | 0.3 MPa, impermeability within 2h | 0.3 MPa, impermeability within 2h | 0.3 MPa, impermeability within 2h | |
| Impact resistance ≤ | 0.5kg·m, no crack | 0.5kg·m, no crack | 0.5kg·m, no crack | |
| Peel strength of lap seam/(N/mm) ≥ | 4.0 or membrane is damaged | 3.0 | — | |
| Tear strength of trapezoid / N ≥ | — | 250 | 450 | |
| Thermal aging(115°C) | Retention rate of maximum tension / % ≥ | — | 90 | 90 |
| Elongation retention rate of maximum tension / % ≥ | — | — | 90 | |
| Chemical resistance | Retention rate of maximum tension / % ≥ | — | 90 | 90 |
| Elongation retention rate of maximum tension / % ≥ | — | — | 90 | |
| Artificial weathering | Retention rate of maximum tension / % ≥ | — | 90 | 90 |
| Elongation retention rate of maximum tension / % ≥ | — | — | 90 | |

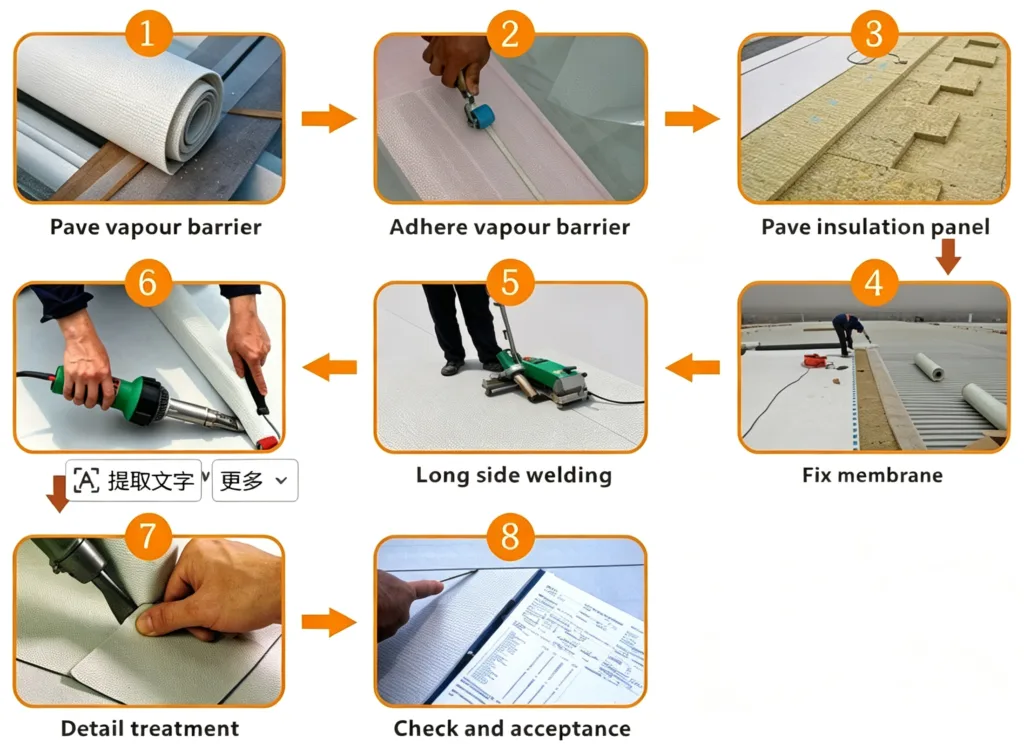

Application Steps （Mechanical Fastening Method）
System Accessories
Detail Treatment
Application Equipment

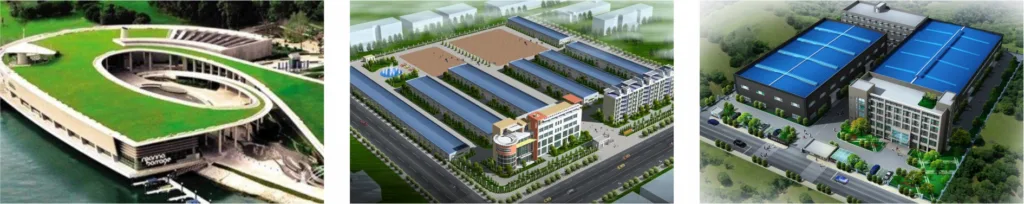

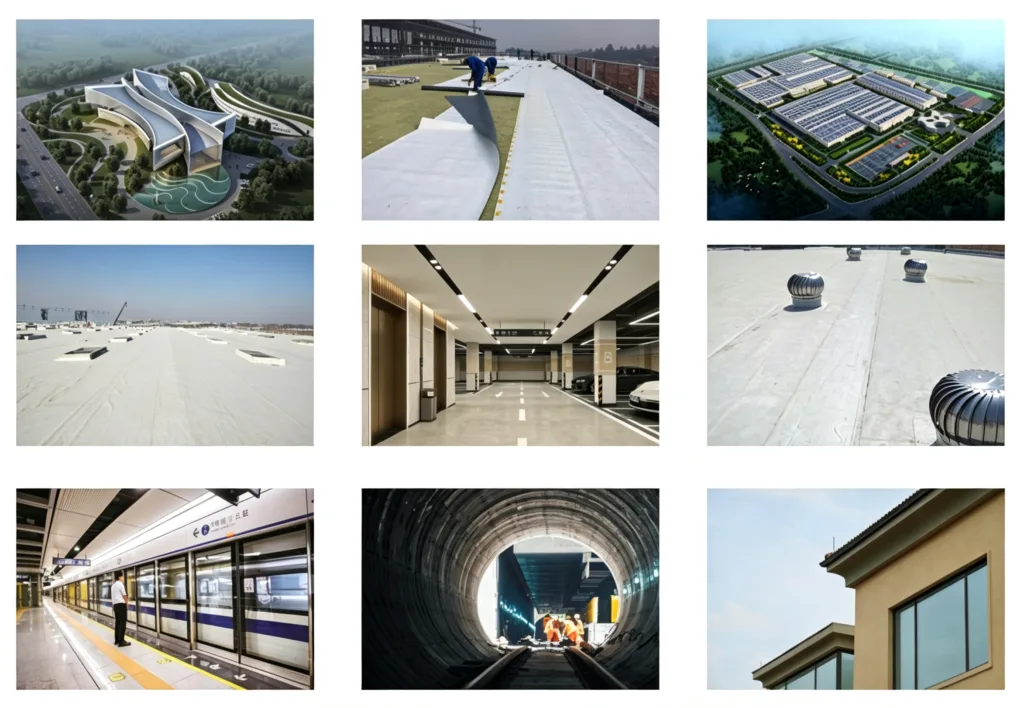

Typical Projects
Storage & Transportation
- Store in cool, dry, ventilated area.
- Shelf life: 12 months under proper storage.
- Avoid direct sunlight, rain, and fire sources.
- Stack horizontally, avoid heavy pressure.
