FortisMate® PMS-TPO
Product Details
| Place of Origin | CHINA |
| Brand Name | FORTISMATE TECH |
| Material | Synthetic Polymer, Root Resistant |
| Minimum Order Quantity | 1,000m² |
| Packaging Details | With or without pallets; For 1.2mm thickness, 13,600m² can be loaded into 1x20GP if without pallets. |
| Supply Ability | 10,000,000m² per Month |
FortisMate PMS Series

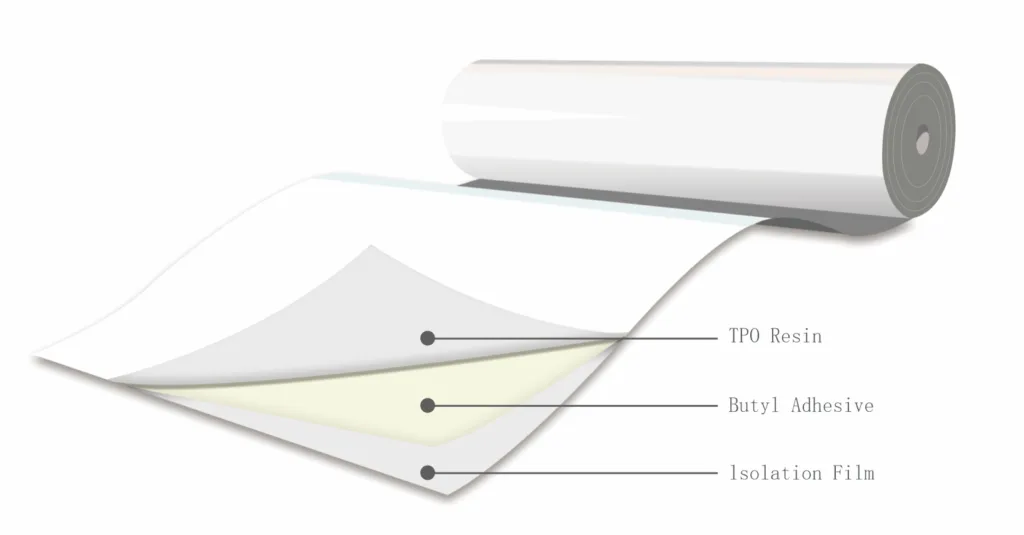

FortisMate®PMS-TPO is a high-performance weather-resistant TPO butyl self-adhesive waterproof membrane, specially developed for roof renovation and repair projects. It is composed of a homogeneous TPO polymer sheet, a high-strength butyl rubber adhesive layer, and a release liner.
Combining the advantages of TPO polymer membrane and self-adhesive technology, it features excellent weather resistance, high tensile strength, large elongation, strong chemical resistance, and easy, safe construction. It is ideal for exposed roof repair and new lightweight roof waterproofing.
Highlight: PMS: Polymer Modified Self-adhesive；TPO: Thermoplastic Polyolefin
Specification
Excellent Aging Resistance: The warranty period of different materials is 5 years and 20 years, and the actual service life is longer.
Strong Chemical Corrosion Resistance: It has the ability to resist acid, alkali and salt corrosion, and can be directly exposed for use.
Excellent Physical and Mechanical Properties: High tensile strength, large elongation and strong resistance to structural deformation.
Soft Material and Good Adhesion: It can provide various thickness specifications such as 0.9mm and 1.2mm.
Simple Construction, Safe and Environmentally Friendly: Self-adhesive, wet-applied and other construction methods can be selected depending on the different situation. The construction is simple and there is no solvent or fire in the process, which is safe and environmentally friendly.
Reduce Energy Consumption and Energy Saving: The light colored surface can reflect sunlight.
Standards: GB/T35468-2017 GB 18242-2008
GB/T 35467-2017
GB/T 35467-2017
| Name | Thickness (mm) | Width (mm) | Length (m) |
|---|---|---|---|
| TPO Weather Resistant Butyl Self-adhesive Waterproof Membrane | 0.9 | 1000/2000 | 30 |
| 1.2 | 1000/2000 | 30 |
Note: Other specifications and models can be determined by negotiation between the supplier and the demander.
Performance Index
| No. | Items | Index | |||
|---|---|---|---|---|---|
| 1 | Tensile Property | Tensile Strength/MPa ≥ | 12 | ||
| Elongation at Break/% ≥ | 500 | ||||
| 2 | Tear Strength/N ≥ | 20 | |||
| 3 | Heat Resistance(100℃, 2h) | No Slipping, Flowing, Dripping≤2mm | |||
| 4 | Low Temperature Flexibility | -40℃, No Cracking | |||
| 5 | Low Temperature Bending | -40℃, No Cracking | |||
| 6 | Impermeable(0.3MPa, 120min) | Impermeable | |||
| 7 | Oil penetration/ sheet pieces ≤ | 2 | |||
| 8 | Nail Water tightness | Approval | |||
| 9 | Thermal Stability | No bulging and flowing | |||
| 10 | Dimensional Stability /% ≤ | 1.5 | |||
| 11 | Holding Power/ Min ≥ | 20 | |||
| 12 | Peel Strength/(N/mm) | Membrane With Membrane (Overlap Edge) | No Treatment ≥ | 1.5 | |
| Heat Treatment ≥ | 1.0 | ||||
| Water Immersion ≥ | 1.0 | ||||
| With Cement-based Panel | No Treatment ≥ | 1.5 | |||
| Heat Treatment ≥ | 1.0 | ||||
| Water Immersion ≥ | 1.0 | ||||
| With Steel Plate | No Treatment ≥ | 1.5 | |||
| Heat Treatment ≥ | 1.0 | ||||
| Water Immersion ≥ | 1.0 | ||||
| 13 | Peel Strength with Cement Mortar /(N/mm) | No Treatment ≥ | 2.0 | ||
| Heat Treatment ≥ | 1.5 | ||||
| 14 | Peel Strength with Cement Mortar After Immersed in Water N/mm | 1.5 | |||
| 15 | Thermal Aging Test (80℃, 168h) | Retention Rate of Tensile Strength % ≥ | 90 | ||
| Retention Rate of Elongation % ≥ | 90 | ||||
| Low Temperature Flexibility | -38℃, No Cracking | ||||
| Low Temperature Bending | -38℃, No Cracking | ||||
| 16 | Artificial Weathering Accelerated Aging | Time/h | 2500ᵃ | ||
| Appearance | No Bulking, Slipping, Flowing | ||||
| Retention Rate of Tensile Strength % ≥ | 90 | ||||
| Retention Rate of Elongation % ≥ | 90 | ||||
| Low Temperature Flexibility | -38℃, No Cracking | ||||
| Low Temperature Bending | -38℃, No Cracking | ||||
| ᵃThe durability life is 20 years, and the artificial weathering accelerated aging time is 5490h. | |||||

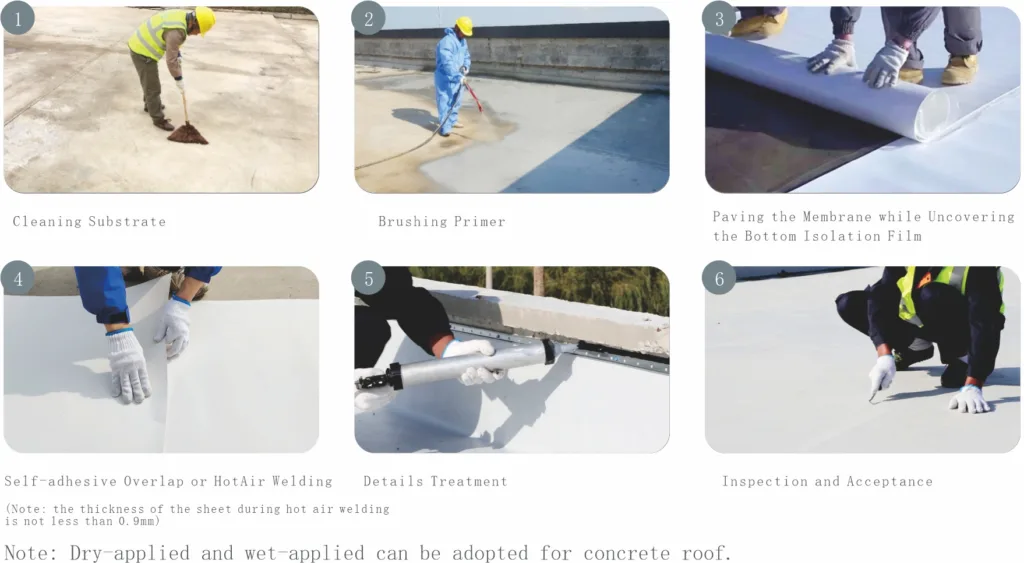

CONSTRUCTION PROCESS

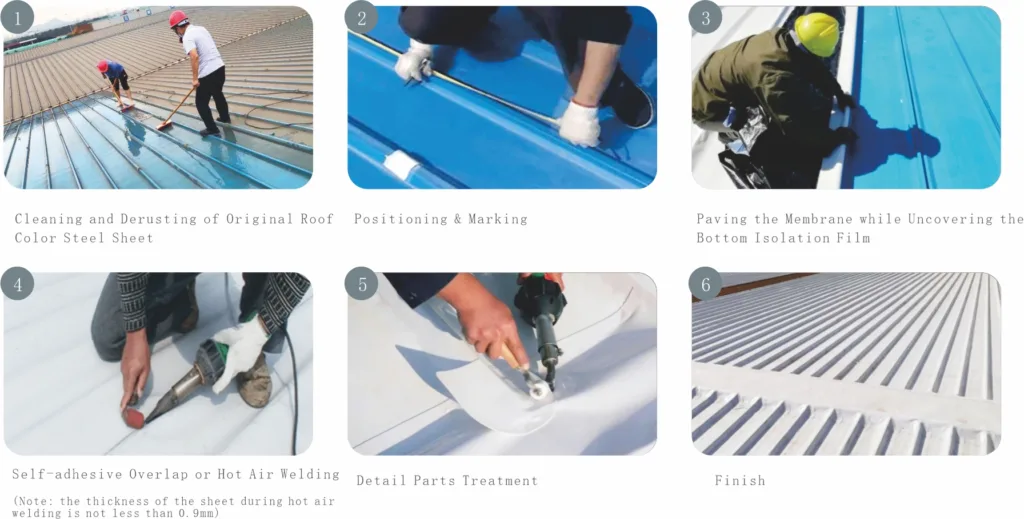

Color Steel Sheet Roof Maintenance

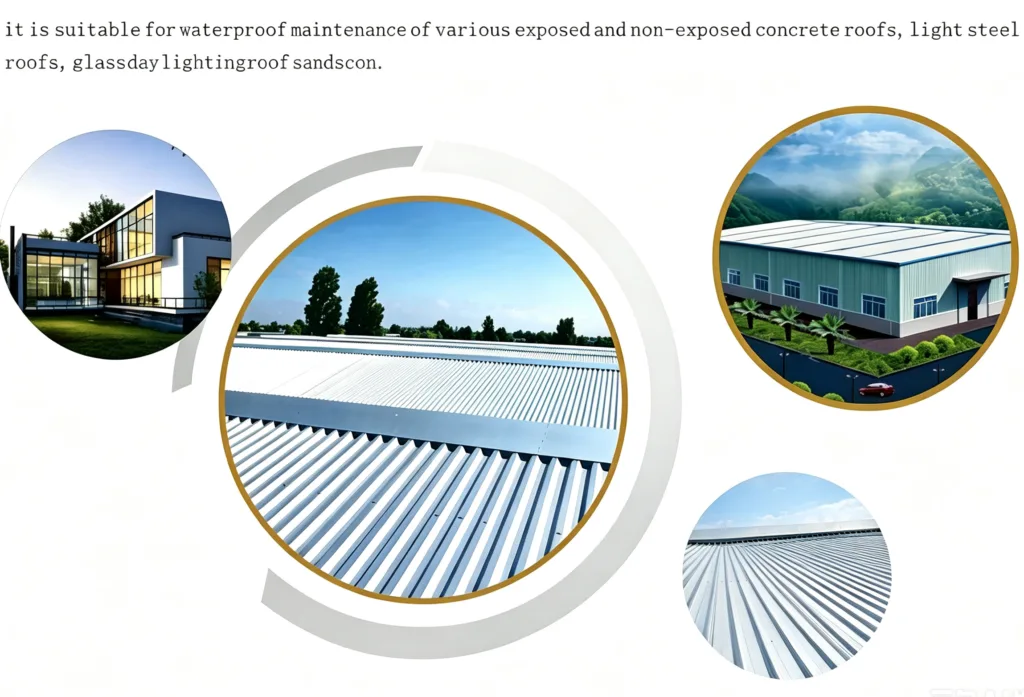

Application Scope
Construction Points
•
Base layer — Clean surface, sufficient strength, no dusting, powdering, hollowing or rust. Apply special treatment agent if necessary.
•
Footwear — Spiked shoes are forbidden. Do not step directly on the waterproof layer.
•
Local maintenance — Clean overlapping parts with the old waterproof layer. Detail parts must be handled in place and sealed tightly.
•
Wet-applied method — Materials need to be customized and matched with special bonding mortar.
•
Protection — No sharp objects directly on the finished layer without protection. Heavy utensils and transport equipment are not allowed. Drilling/puncturing is prohibited. If damaged, notify the waterproof unit for repair immediately.
Storage and Transport
•
Segregation — Products of different types and specifications shall be stacked separately and shall not be mixed.
•
Protection — Protect from sunlight, rain and keep under ventilated conditions.
•
Storage — Temperature below 45°C. Membrane shall not be placed horizontally; stack in a single layer when placed vertically.
•
Transport — Prevent tilting or side pressure. Cover if necessary during transit.
•
Shelf life — Under normal storage and transport conditions, storage period is one year from production date.
Quality Assurance
✓ Quality assured
PMS-TPO is manufactured under strict quality control, compliant with enterprise standards and industry specifications. It has been widely used in large-scale roof renovation projects, ensuring reliable performance and long service life.
FAQs
What types of products can we offer?
We supply a complete range of waterproof materials for construction projects worldwide, split into two core product lines:
Waterproof Membranes
Self-adhesive, torch-applied, conventional bituminous, root-resistant and pre-applied bitumen rolls, as well as special PVC and TPO polymer sheets for tunnel engineering.
Liquid Waterproof Coatings
Polyurethane, polyurea, acrylic, bituminous, polymer-modified cement and capillary crystalline waterproof coatings.
Our materials are applicable to underground basements, tunnels, exposed roofs, green planting terraces, reservoirs and exterior wall projects. Custom formulas and customized packaging services are offered to meet diverse client demands.
What logistics do we ship through?
We cooperate with multiple mature logistics solutions for global delivery: sea freight, air freight, international express (DHL, FedEx, UPS, TNT) and railway transport. We will select the most cost-effective and stable shipping method based on your order volume, delivery deadline and destination country. Door-to-door delivery service is available upon request.
Can it be customized as per our requirements?
Specifications vary for different series of our waterproof products.
Other specifications and models can be determinedby negotiation between the supplier and the demander.
What is our ordering process?
We adopt the deposit + full balance payment mode for all orders:
A 50% advance deposit is required to arrange raw materials and production after order confirmation.
The remaining full payment must be completed before we arrange delivery of goods.
We accept T/T bank transfer and other negotiable payment terms.
What services are included in the after-sales service?
1、Professional online construction technical support & free technical documents
2、Official waterproof warranty coverage for all our products
3、24-hour fast after-sales reply & long-term supply of matching waterproof auxiliary materials
