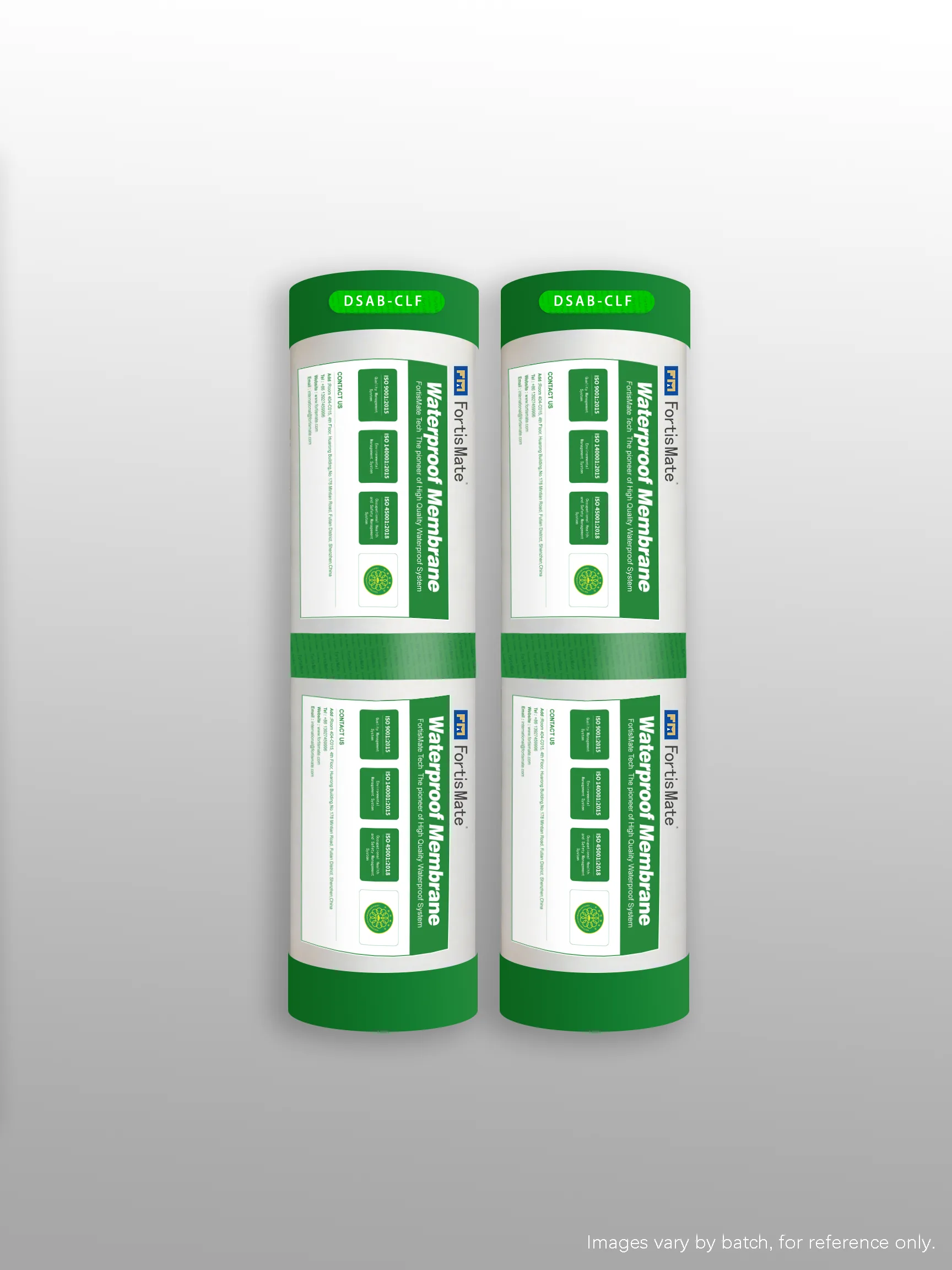

FortisMate® DSAB-CLF
Product Details
| Place of Origin | CHINA |
| Brand Name | FORTISMATE TECH |
| Model Number | DSAB-CLF |
| Application Methods | Wet Application；Dry Application |
| Minimum Order Quantity | 1,000m² |
| Packaging Details | With or without pallets; for 1.2mm thick, 12,000 ㎡ can be loaded into 1x20GP if without pallets. |
| Supply Ability | 110,000,000m² per Month |
Product Description
FortisMate™ Membrane Series

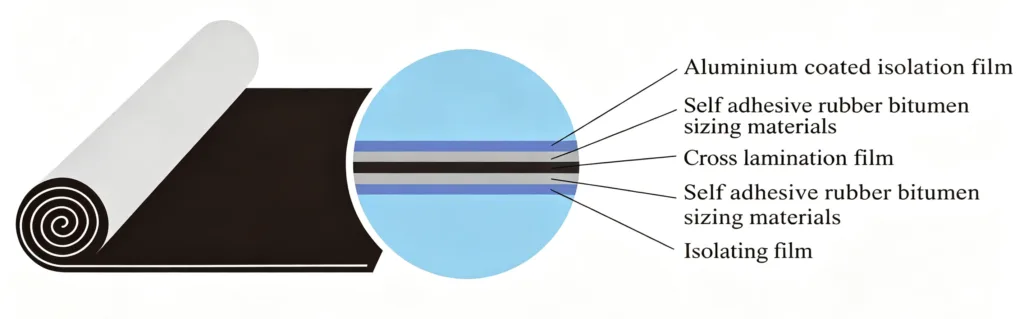

DSAB-CLF is a double-sided self-adhesive bituminous waterproof membrane reinforced with a premium CLF (Cross-Laminated Film) core, coated with high-tack modified rubberized bitumen on both sides and protected by silicone release liners.
Manufactured with high-quality modified bitumen and high-strength cross laminated film, the membrane delivers exceptional tensile strength, superior tear resistance, excellent dimensional stability, and reliable double-sided adhesion. It supports Dry Application(with Primer) and Wet Application(with Wet Cement Mortar) installation, ideal for basements, roofs, tunnels, bridges and high-reliability waterproofing projects.
Highlight: DSAB: Double-sided Self-adhesive Bituminous；CLF: Cross-Laminated Film, ultra-high strength, anti-tear, dimensionally stable.
Core Advantages
1. CLF Reinforcement, Extreme Strength
Unique cross-laminated structure provides ultra-high tensile strength, superior tear resistance, and excellent dimensional stability. Resists tearing even with notches; far stronger than ordinary HDPE/PET films.
2. Double-sided Adhesion & Skin-Type Waterproofing
Bonds tightly to substrate and overlaps. Forms integrated skin-type waterproofing, eliminates water channeling, prevents large-area leakage.
3. Localized Damage, Easy Maintenance
Any failure is confined; leakage points match damage points. Simple inspection and repair, low maintenance cost.
4. Unique Self-Healing Property
Automatically seals small punctures and micro-cracks, enhancing long-term waterproof reliability.
5. Safe & Cold-Applied Construction
No open flame, no hot melting, no solvents. Fire-safe, non-toxic, suitable for confined spaces.
6. Wet-Lay Compatible & Weather-Resistant
Installable on moist/damp/uneven substrates. No primer; rain-resistant construction, guarantees schedule.
7. Excellent Temperature Adaptability
Resists 70°C high-temperature flow and –20°C low-temperature cracking. Stable in extreme climates.
Application Range

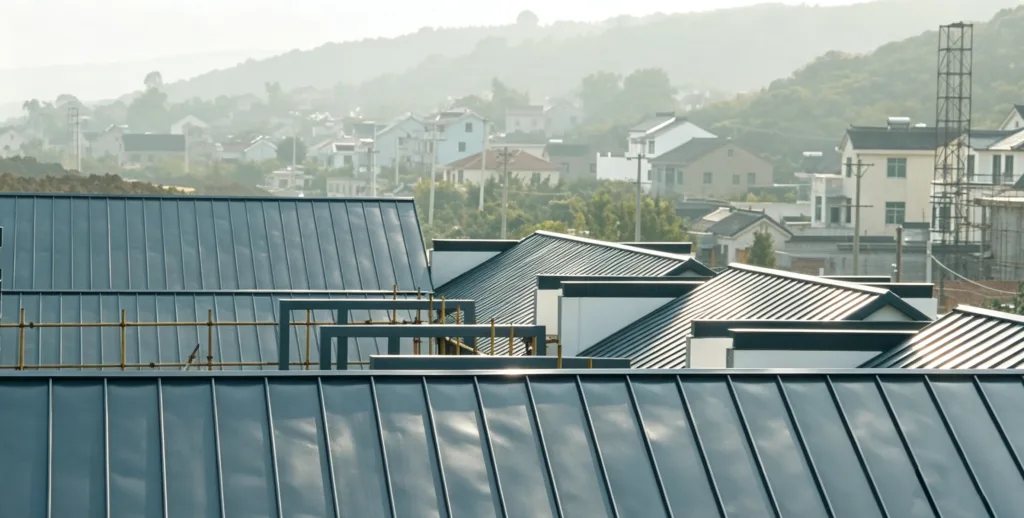

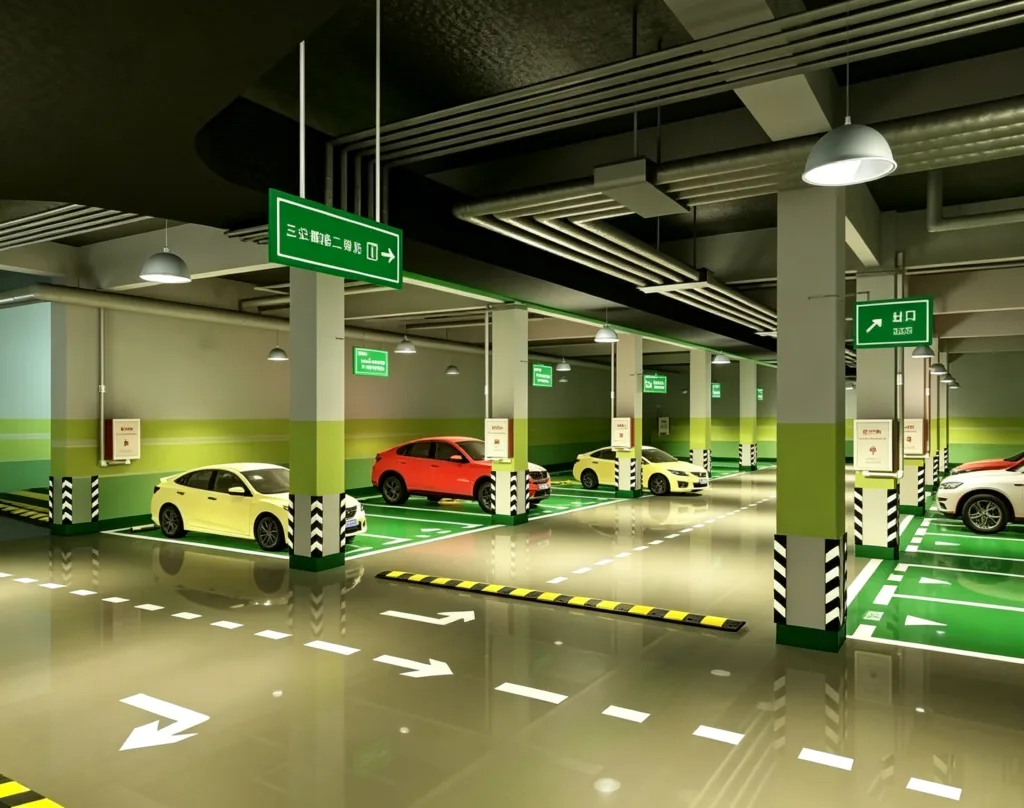

Basement, roof and other place of industrial and civil construction.
Specifications
| Thickness(mm) | Width(mm) | Length(m) |
|---|---|---|
| 1.5 | 1000/2000 | 20 |
| 2.0 | 1000/2000 | 20 |
Quality Assurance
DSAB-CLF is manufactured under strict ISO quality control systems, with advanced production lines and raw material inspection. All products comply with national and international standards, ensuring consistent quality and reliable performance.
Physical and Mechanical Properties
Performance standard GB/T23457-2009
| No. | Item | Index | ||
|---|---|---|---|---|
| P | ||||
| I | II | |||
| 1 | Tensile property | Tensile strength/(n/50mm) ≥ | 150 | 200 |
| Elongation at break/% ≥ | 30 | 150 | ||
| 2 | Tearing strength/n ≥ | 12 | 25 | |
| 3 | Heat resistance | 70℃, 2h no displacement. No flow ability. No drip page | ||
| 4 | Low temperature flexibility /℃ | -15 | -25 | |
| No crack | ||||
| 5 | Water impermeability | 0.3MPa, impermeability within 120min | ||
| 6 | Peel adhesion with membrane/(N/mm) ≥ | No treatment | 1.0 | |
| Heat treatment | 1.0 | |||
| 7 | Oil permeability/Piece ≤ | 2 | ||
| 8 | Holding power/Min ≥ | 15 | ||
| 9 | Peel adhesion with cement mortar/(N/mm)≥ | No treatment | 2.0 | |
| Heat treatment | 1.5 | |||
| 10 | Peel adhesion with cement mortar after immersion /(N/mm) ≥ | 1.5 | ||
| 11 | Thermal ageing (70℃, 168h) | Tension retention/% ≥ | 90 | |
| Elongation retention/% ≥ | 80 | |||
| Low temperature flexibility / ℃ | -13 | -23 | ||
| No crack | ||||
| 12 | Thermal stability | Appearance | No wrinkles, no slip, no flow ability | |
| Dimensional size/% ≤ | 2.0 | |||
Performance standard GB/T23441-2009
| No. | Item | Index | ||||
|---|---|---|---|---|---|---|
| N | ||||||
| PE | PET | |||||
| I | II | I | ||||
| 1 | Tensile property | Tensile strength/(n/50mm) ≥ | 150 | 200 | 150 | |
| Elongation at break/% ≥ | 200 | — | 30 | |||
| Bitumen elongation at break/% ≥ | 250 | — | 150 | |||
| Tensile appearance | No divergence phenomenon before the film breakage when bitumen coverage to the film when stretching | |||||
| 2 | Nail tearing strength/n ≥ | 60 | 110 | 30 | ||
| 3 | Heat resistance | 70℃, 2h no displacement, No flow ability, No drip page | ||||
| 4 | Low temperature flexibility /℃ | -20 | -30 | -20 | ||
| No crack | ||||||
| 5 | Water impermeability | 0.2MPa, impermeability within 120min | ||||
| 6 | Peel adhesion/(N/mm) ≥ | Membrane with membrane | 1.0 | |||
| Membrane with aluminium sheet | 1.5 | |||||
| 7 | Nail water tightness | Passed | ||||
| 8 | Oil permeability/Piece ≤ | 2 | ||||
| 9 | Holding power/Min ≥ | 20 | ||||
| 10 | Thermal ageing | Tension retention/% ≥ | 200 | 30 | ||
| Elongation retention/% ≥ | — | — | ||||
| Low temperature flexibility / ℃ | -18 | -28 | -18 | — | ||
| No crack | ||||||
| Peel adhesion of membrane and aluminium sheet/(N/mm) ≥ | 1.5 | |||||
| 11 | Thermal stability | Appearance | No wrinkles, no slip, no flow ability | |||
| Dimensional size/% ≤ | 2.0 | |||||
Application technolgy （Wet-application）

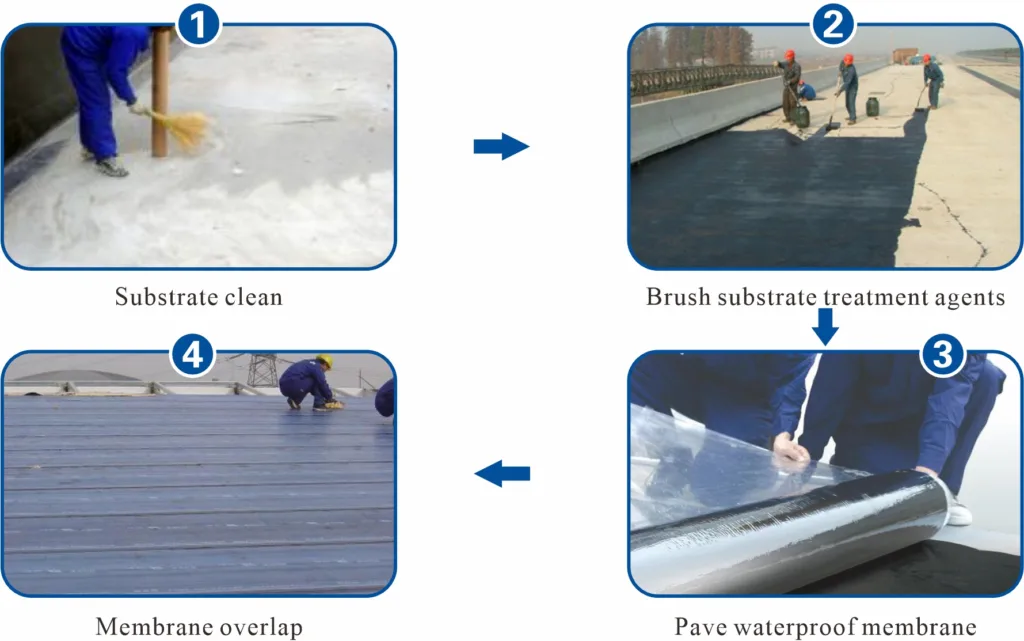

Application technolgy （Dry-application）

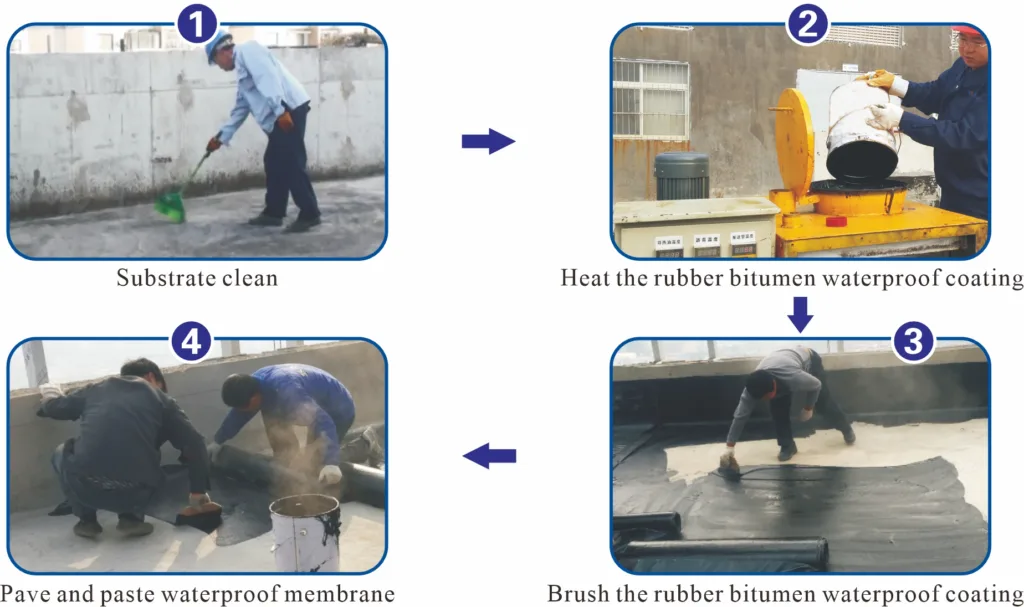

Application technolgy（Heat-application）
Storage and Transportation
- 1. Different types or specifications of products should be separated, not mixed.
- 2. Keep it dry and ventilated, protected from the sun or rain. Storage temperature should never be higher than 45
- 3. Pile up the membranes flatwise whose stockpile height never exceeds five layers.
- 4. Storage time is at least one year from manufacture date on if the product is under normal operation of storage.

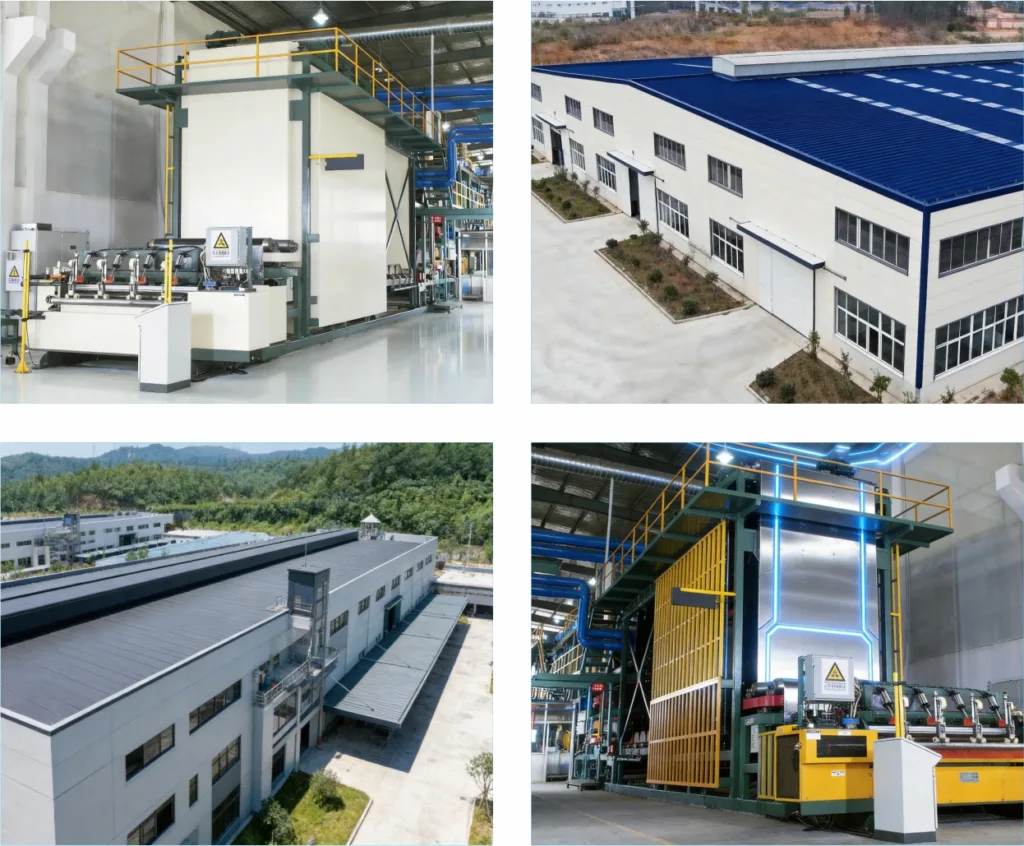

Manufacturing bases

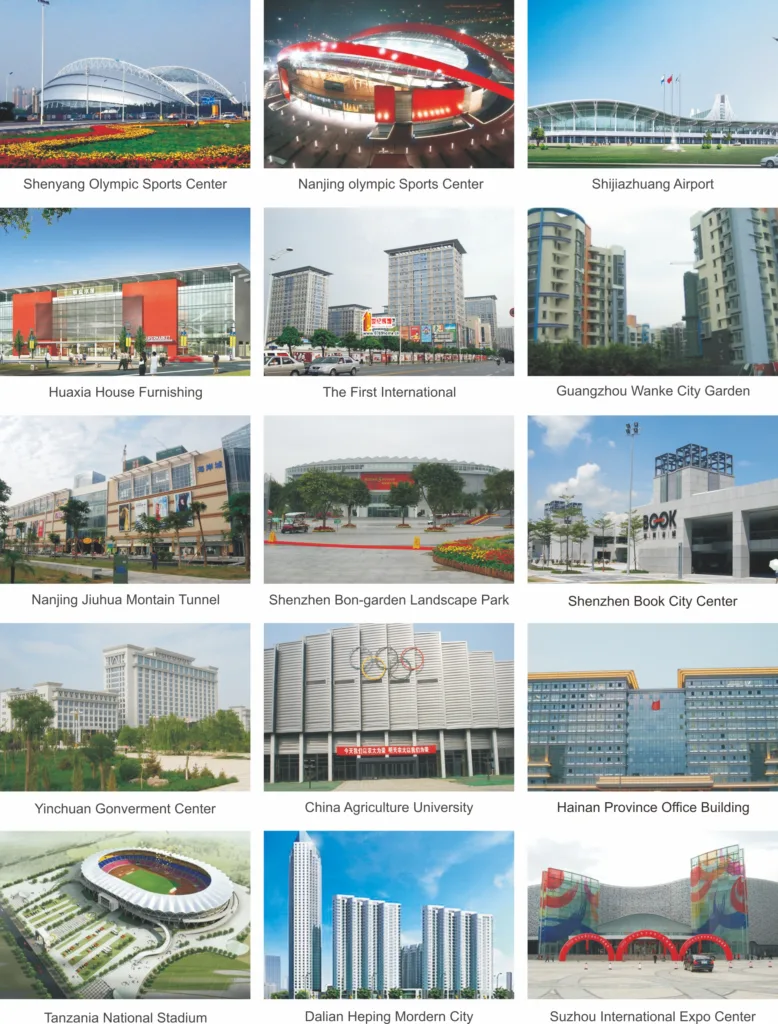

Typical Projects
FAQs
What types of products can we offer?
We supply a complete range of waterproof materials for construction projects worldwide, split into two core product lines:
Waterproof Membranes
Self-adhesive, torch-applied, conventional bituminous, root-resistant and pre-applied bitumen rolls, as well as special PVC and TPO polymer sheets for tunnel engineering.
Liquid Waterproof Coatings
Polyurethane, polyurea, acrylic, bituminous, polymer-modified cement and capillary crystalline waterproof coatings.
Our materials are applicable to underground basements, tunnels, exposed roofs, green planting terraces, reservoirs and exterior wall projects. Custom formulas and customized packaging services are offered to meet diverse client demands.
What logistics do we ship through?
We cooperate with multiple mature logistics solutions for global delivery: sea freight, air freight, international express (DHL, FedEx, UPS, TNT) and railway transport. We will select the most cost-effective and stable shipping method based on your order volume, delivery deadline and destination country. Door-to-door delivery service is available upon request.
Can it be customized as per our requirements?
Specifications vary for different series of our waterproof products.
Other specifications and models can be determinedby negotiation between the supplier and the demander.
What is our ordering process?
We adopt the deposit + full balance payment mode for all orders:
A 50% advance deposit is required to arrange raw materials and production after order confirmation.
The remaining full payment must be completed before we arrange delivery of goods.
We accept T/T bank transfer and other negotiable payment terms.
What services are included in the after-sales service?
1、Professional online construction technical support & free technical documents
2、Official waterproof warranty coverage for all our products
3、24-hour fast after-sales reply & long-term supply of matching waterproof auxiliary materials
