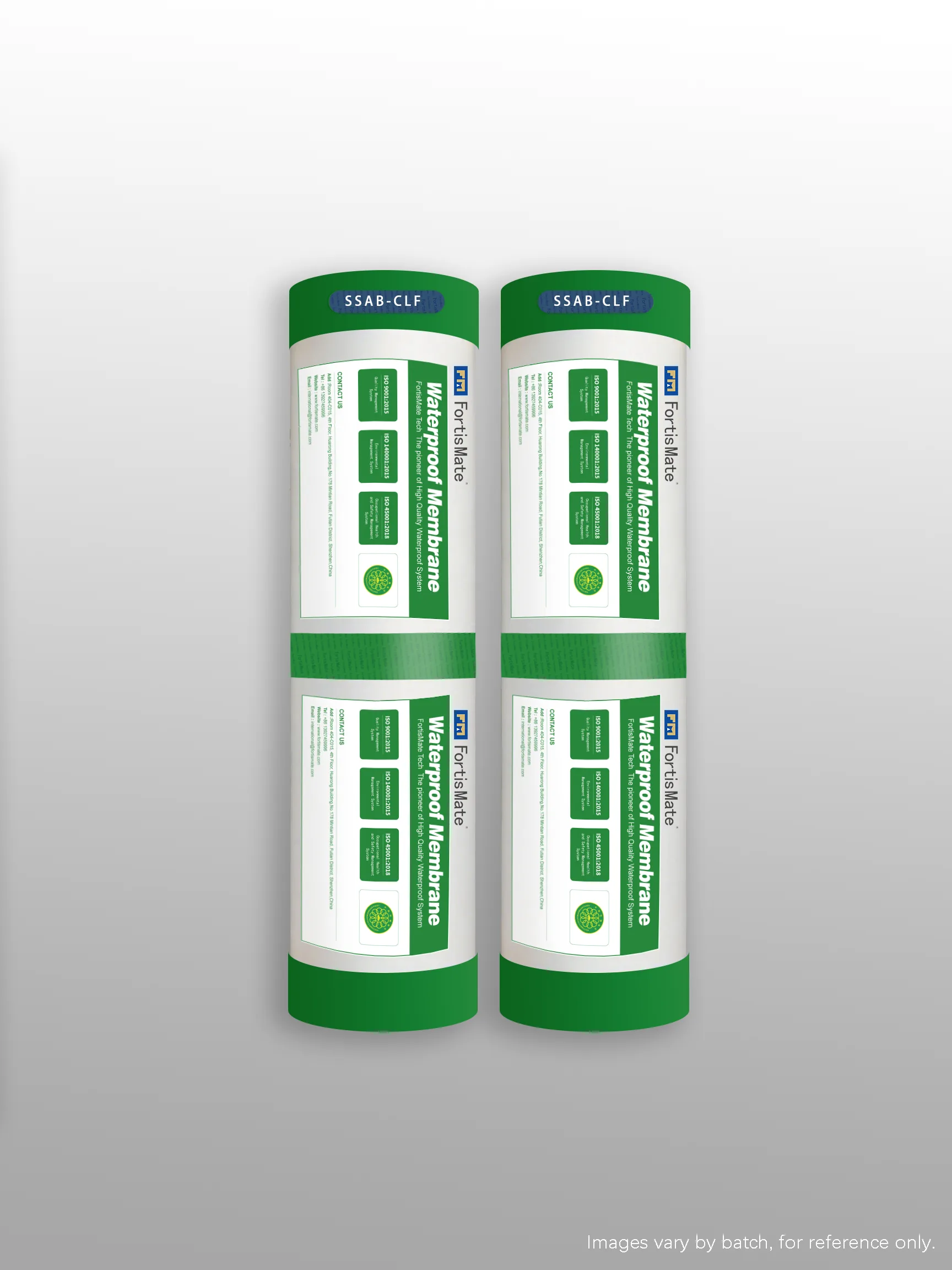

FortisMate®SSAB-CLF
Product Details
| Place of Origin | CHINA |
| Brand Name | FORTISMATE TECH |
| Model Number | SSAB-CLF |
| Application Methods | Wet Application, Hot Application, Dry Application |
| Minimum Order Quantity | 1,000㎡ |
| Packaging Details | With or without pallets; For 1.5mm thickness, 11,500 ㎡ can be loaded into 1x20GP if without pallets. |
| Supply Ability | 10,000,000㎡ per Month |
FortisMate SAB Series

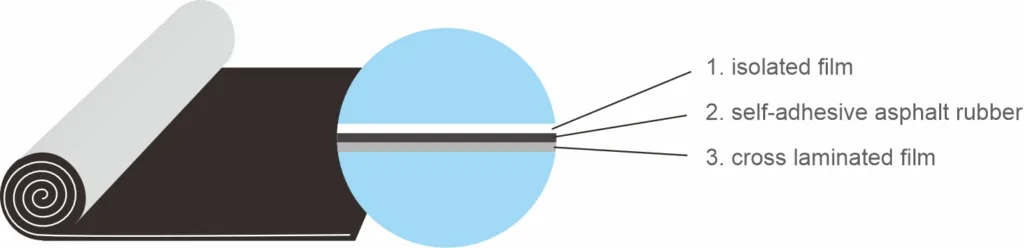

FortisMate® SSAB-CLF is a high-performance single-sided self-adhesive bituminous waterproof membrane reinforced with a premium CLF (Cross-Laminated Film) top layer and coated with high-tack self-adhesive modified bitumen on the bonding side.
Manufactured with high-quality rubberized bitumen compound and a tough cross-laminated polymer film, the membrane delivers exceptional tensile strength, superior tear resistance, excellent dimensional stability, and outstanding weatherability. It supports both Dry Application(with Primer) and Wet Application(with Wet Cement Mortar) installation, ideal for basements, roofs, tunnels, and various structural waterproofing projects.
Highlight: SSAB: Single-sided Self-adhesive Bituminous；CLF: Cross-Laminated Film, high strength, anti-tear, dimensionally stable；WET-APPLICATION WATERPROOFING MEMBRANE
Core Advantages
01
Superior CLF reinforcement
Unique cross-laminated film structure provides extreme tensile strength, excellent tear resistance, and high dimensional stability. Unlike ordinary HDPE films, CLF resists tearing even with notches, offering reliable protection for the bituminous core.
02
Skin-type waterproofing · no water channeling
Bonds permanently and tightly to concrete, cement mortar, or moist substrates, forming an integrated “skin-type” waterproofing system. Eliminates water channeling, preventing large-area leakage even if minor damage occurs.
03
Ultra-high bonding · easy maintenance
Exceptional adhesion to substrates; any membrane damage is localized, and leakage points align exactly with failure points, enabling simple and fast repairs with low maintenance costs.
04
Unique self-healing property
The modified bituminous adhesive automatically seals small punctures and micro cracks, enhancing long-term waterproofing reliability, especially for exposed roof applications.
05
Safe · cold-applied construction
Cold-applied, no open flame, no hot melting, no volatile solvents. Zero fire hazards, non toxic emissions, safe for workers and the environment. Perfect for confined spaces and high-safety sites.
06
Wet-lay compatible · weather-resilient
Installable directly on moist, damp, or even unleveled substrates via cement mortar wet lay method. No primer required; construction is unaffected by rainy weather, ensuring on-schedule project delivery.
07
Excellent temperature adaptability
Resists high-temperature flow (70°C, 2 h) and low-temperature cracking (-20°C). Maintains flexibility across diverse climatic regions, ensuring stable performance year round.
Product Feature
01
Excellent physical performance
With excellent physical performance, especially its high tear strength and dimensional stability, highlight the material adaptability of the construction environment.
02
Bonding reliable · easy maintenance
Waterproof membrane is bonded to structure strongly. The membrane appears any partial destruction, the water can be restricted in a small range, without fluid channeling. Even if a few leakage, leakage points will also match with breakdown point, easy to maintenance.
03
Unique self-healing
With unique self-healing, automatically heal small cracks, hanging a tile roof more magic.
04
Simple and efficient construct
According to field condition, using wet or dry application process, construction becomes simple and efficient.
05
Unique wet-application technology
Wet weather or even not leveling substrate can construct, no bottom coating, with high freedom, and not affected by the weather. The rainy season construction, advantage is more outstanding, which is the guarantee construction period of the most powerful “weapon”.
06
Safe and environmental protection
Save solvent and fuel in the construction process, avoid the environmental pollution and fire hazard, and save the resources.
Specification and Dimension
| Thickness ( mm ) | Width ( mm ) | Length ( m ) |
|---|---|---|
| 1.2 | 1000 | 20 |
| 1.5 | 1000 | 20 |
| 2.0 | 1000 | 20 |
Performance Index
| NO. | Item | Index | ||
|---|---|---|---|---|
| I | II | |||
| 01 | Tensile property | Tensile strength/(N/50mm) ≥ | 150 | 200 |
| Elongation at break with maximum tension/ % ≥ | 200 | |||
| Asphalt elongation at break/ % ≥ | 250 | |||
| Phenomenon | Stretching process, no separation phenomenon between asphalt coating cover layer and membrane before the membrane ruptures. | |||
| 02 | Nail rod tear strength ≥ | 60 | 110 | |
| 03 | Heat resistance | 70 sliding no more than 2mm | ||
| 04 | Low temperature flexibility/ ℃ | -20 | -30 | |
| No crack | ||||
| 05 | Impermeability | 0.2mpa impermeability within 120mins | ||
| 06 | Peel strength/(N/mm) | Membrane and membrane | 1.0 | |
| Membrane and aluminium sheet | 1.5 | |||
| 07 | Nail rod water tightness | Pass | ||
| 08 | Oil permeability/piece ≤ | 2 | ||
| 09 | Holding power ≥ | 20 | ||
| 10 | Thermal aging | Tension retention ≥ | 80 | |
| Elongation at break with maximum tension/ % ≥ | 200 | |||
| Low temperature flexibility/℃ | -18 | -28 | ||
| No crack | ||||
| 11 | Thermal stability | Peel strength membrane and aluminum sheet ≥ | 1.5 | |
| Appearance | Nodrum, creases, sliding, flowing | |||
| Dimensional change ≤ | 2 | |||
| NO. | Item | Index | ||
|---|---|---|---|---|
| I | II | |||
| 01 | Tensile property | Tension/(n/50mm) ≥ | 150 | 200 |
| Elongation at break with maximum tension/% ≥ | 30 | 150 | ||
| 02 | Tear strength/n ≥ | 12 | 25 | |
| 03 | Heat resistance | No displacement,flowing,drip | ||
| 04 | Low temperature flexibility/℃ | -15 | -25 | |
| No crack | ||||
| 05 | Impermeability | 0.3mpa impermeability within 120min | ||
| 06 | Peel strength membrane and membrane/(n/mm) | No treatment | 1.0 | |
| Heat treatment | 1.0 | |||
| 07 | Oil permeability/per ≤ | 2 | ||
| 08 | Holding power/min ≥ | 15 | ||
| 09 | Peel strength with cement mortar/(n/mm) | No treatment | 2.0 | |
| Heat treatment | 1.5 | |||
| 10 | Peel adhesion with cement mortar after immersion/(n/mm) ≥ | 1.5 | ||
| 11 | Thermal aging (70℃/168h) | Tension retention/% ≥ | 90 | |
| Elongation retention/% ≥ | 80 | |||
| Low temperature flexibility/℃ | -13 | -23 | ||
| No crack | ||||
| 12 | Thermal stability | Appearance | Nodrum,creases,sliding,flowing | |
| Dimensional change ≤ | 2.0 | |||
Storage and Transportation
Storage
- Cool, dry, ventilated warehouse · avoid direct sunlight & rain
- Storage temp ≤ 45°C · stack horizontal (max 5 layers) or vertical (1 layer only)
- Keep away from fire, heat sources, and sharp objects
Transport & Shelf life
- Transport horizontally · avoid heavy pressure and impact
- Shelf life: 12 months from production date (under proper storage)

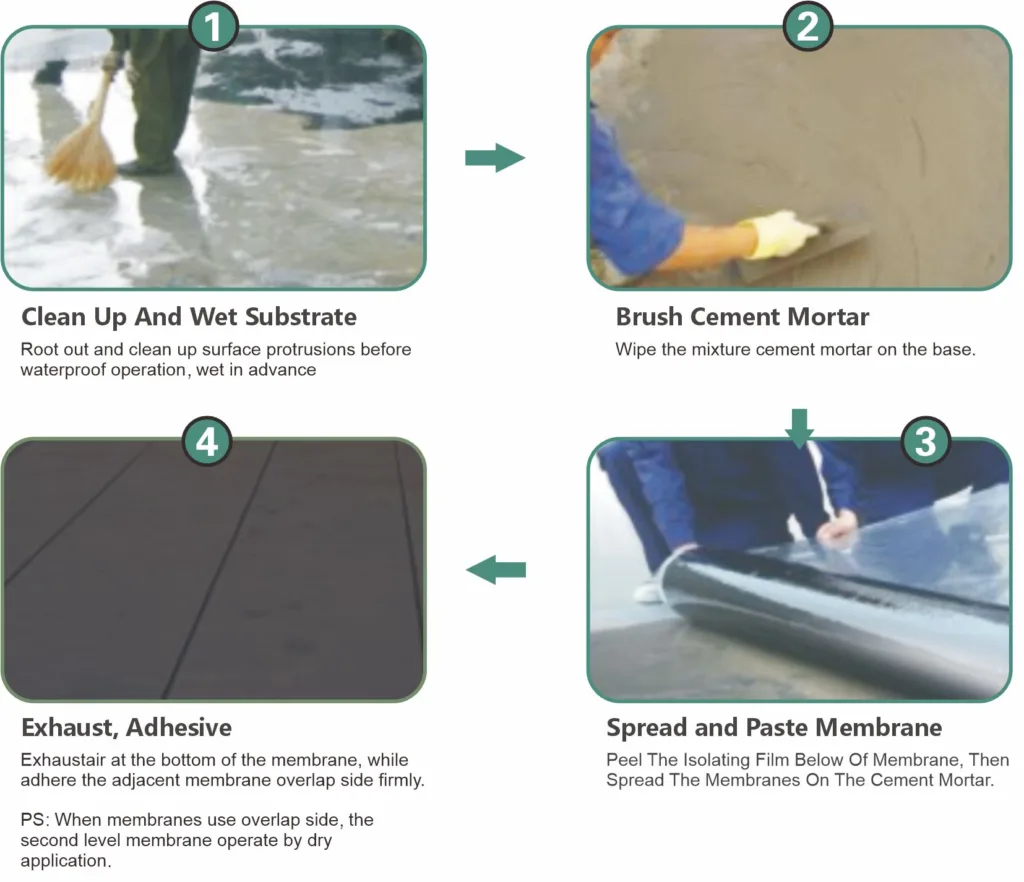

Application method （Wet-application）

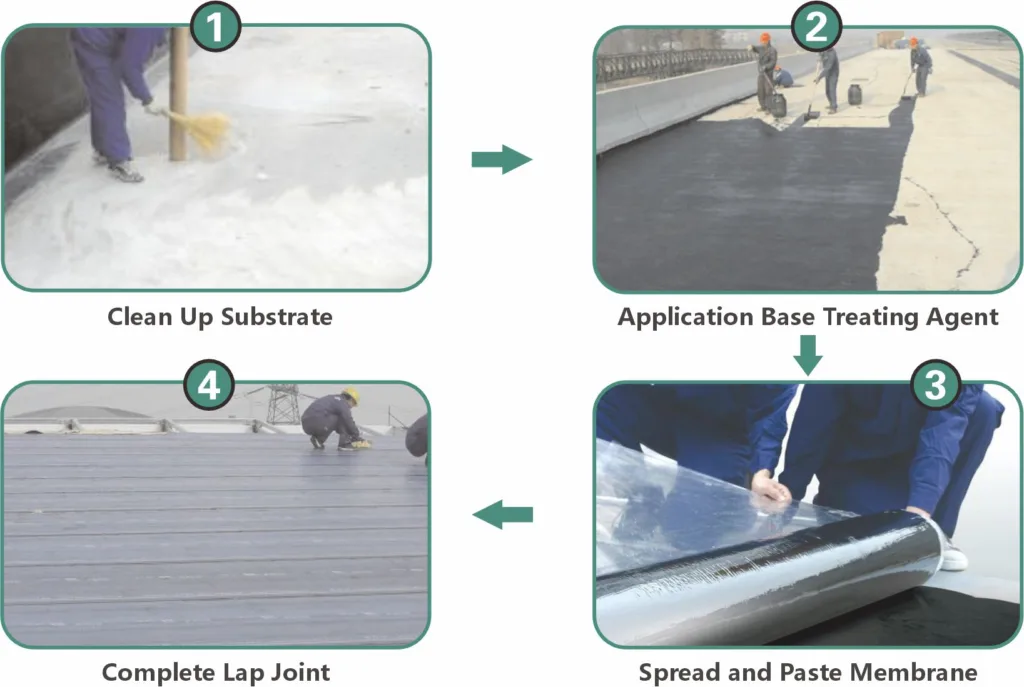

Application method （Dry-application）
Manufacturing Bases
Typical Projects
FAQs
What types of products can we offer?
We supply a complete range of waterproof materials for construction projects worldwide, split into two core product lines:
Waterproof Membranes
Self-adhesive, torch-applied, conventional bituminous, root-resistant and pre-applied bitumen rolls, as well as special PVC and TPO polymer sheets for tunnel engineering.
Liquid Waterproof Coatings
Polyurethane, polyurea, acrylic, bituminous, polymer-modified cement and capillary crystalline waterproof coatings.
Our materials are applicable to underground basements, tunnels, exposed roofs, green planting terraces, reservoirs and exterior wall projects. Custom formulas and customized packaging services are offered to meet diverse client demands.
What logistics do we ship through?
We cooperate with multiple mature logistics solutions for global delivery: sea freight, air freight, international express (DHL, FedEx, UPS, TNT) and railway transport. We will select the most cost-effective and stable shipping method based on your order volume, delivery deadline and destination country. Door-to-door delivery service is available upon request.
Can it be customized as per our requirements?
Specifications vary for different series of our waterproof products.
Other specifications and models can be determinedby negotiation between the supplier and the demander.
What is our ordering process?
We adopt the deposit + full balance payment mode for all orders:
A 50% advance deposit is required to arrange raw materials and production after order confirmation.
The remaining full payment must be completed before we arrange delivery of goods.
We accept T/T bank transfer and other negotiable payment terms.
What services are included in the after-sales service?
1、Professional online construction technical support & free technical documents
2、Official waterproof warranty coverage for all our products
3、24-hour fast after-sales reply & long-term supply of matching waterproof auxiliary materials
